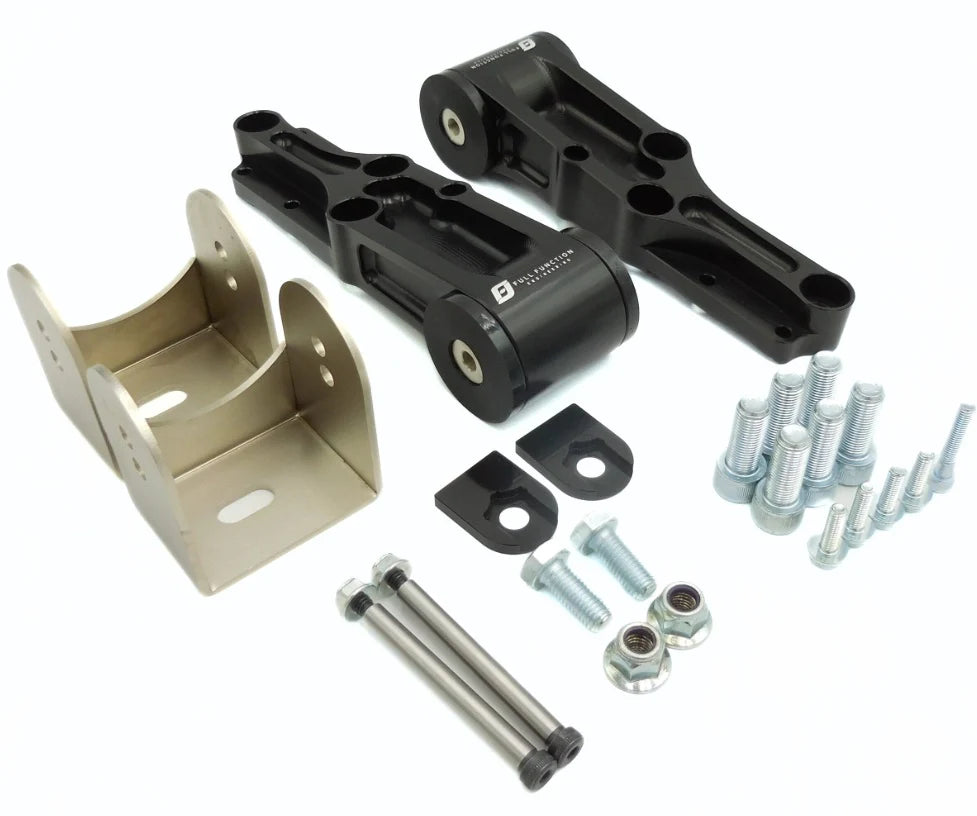

Full Function Engineering FD3S Rx7 Motor Mounts



FD3S Adjustable Billet Engine Mount

Select 5mm extended hardware for use with the Turblown FD3S Oil Pan

New Features:

Lighter by 3.7oz each. Nearly 1/2 lb. for the set

Locking tab for mount bracket  allows easy installation

– Available in three firmness

 68A (Soft)    – This is nearest to the stock mount feel but transfers slightly more vibration/noise but offers increased response.

85A (Firm)    – An intermediate step from the 68A for higher horsepower street/strip applications.

Delrin (Solid) – For essentially rigid engine mounting for extremely high horsepower applications and track use.

– Maximum surface area for confident leak-free oil pan sealing

– Mounts CNC’ed from Type II anodized 6061-T6 Aluminum

– High Strength class 12.9 hardware.  Extended Hardware available for thicker oil pans or pan brace. (5mm longer than standard hardware)

– Brackets from Electroless Nickel plated 10 gauge 1018 CR Steel

– Removable bushings allow for end user replacement for softer/harder choices

We recommend only using Permatex “Right Stuff” sealant

If you can’t decided on which firmness or are worried about potential vibration transmission please contact us for more insight.

*The “Soft” compound will transmit more vibration than a OEM mount.
